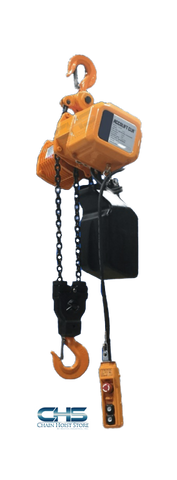

2 Ton ACCOLIFT CLH Electric Chain Hoist - 9 fpm - Three Phase

2 Ton ACCOLIFT CLH Electric Chain Hoist - 9 fpm - Three Phase

ACCOLIFT

2230040
  • $3,993.00


*Chain Container Included with Each Purchase!

*Standard Lead Time = 24-48 Hours to ship

*See Lead Times in the main menu for current factory shipping times.

2 Ton ACCOLIFT CLH Electric Chain Hoist

Since 1904, ACCO has been a premier manufacturer of overhead cranes and hoists. Acco specializes in fully engineered, reliable solutions designed to meet our customers applications. For over 100 years Acco has been a leader in the material handling industry, working hard to develop custom and innovative machinery and provide durable time-tested solutions built to last.

 Product Features

  • Friction Clutch & Upper Limit Switch

    • A friction clutch serves as a protective device to prevent lifting when the hoist is overloaded
    • The upper limit switch stops the hoist motor when the hoist is raised to the high hook, avoiding unnecessary clutch wear



  • Hoist Motor Brake

    • A simple and fast-acting conical style motor brake for reliable operation



  • Push Button Control

    • One-handed operation with a compact design and NEMA 4 rated protection
    • Mushroom on/off button and push button cable with built-in strain relief included



  • Electric Control Panel

    • Single speed hoists are reconnectable for multiple voltages (115/208/230V for single phase and 208/230/460V for three phase)
    • Includes running time meter and counter for hoist motion, housed in a NEMA 12 enclosure
    • Standard control transformer output is 115V with a 48V option available
    • Power supply cord length of 15 feet



  • Variable Frequency Drive (VFD) Hoists

    • Available in 2-speed operation and can be supplied for various power supplies (230-1-60, 208/230-3-60, 460-3-60)
    • Inverter provides run time for maintenance operations



  • Heavy-Duty Hoist Motor

    • High torque design with 30-minute duty rating (single phase, single speed motors are rated 20-minute)
    • Class F motor insulation and thermal protection included



  • Load Sheave / Chain Guide

    • Full floating chain guide for proper engagement of chain on load sheave
    • Load sheave features 5 pockets for smooth operation and load distribution
    • Hoist body includes a port for visual inspection of the load sheave



  • Load Chain

    • Grade 80 load chain with high resistance to wear and corrosion
    • 20 feet of lift included, longer lifts available upon request
    • Nickel plated and stainless steel options available



  • Hooks

    • Forged carbon steel hook with heavy-duty hook latch and thrust bearing for 360° rotation
    • Non-rotating top hook for hook suspended hoists
    • Optional bullard, stainless steel, and bronze hooks available



  • Chain Container

    • Standard equipment includes a molded polypropylene container to securely contain the chain and lubricant
    • Canvas and engineered containers for long lift applications available as options



  • Gear Box / Oil Lubrication

    • Alloy steel helical and spur gear reduction in the gearbox
    • Easily accessible gear lubrication from the top of the hoist
    • Inspection port for the chain pocket wheel and food grade oil option available



  • Push / Pull Trolley

    • Adjustable for flange widths from 3.25” to 12” without additional materials
    • Side guide rollers for smooth motion and reduced wear on wheels and beam
    • Dual tread wheels for operation on tapered or flat flange beams
    • Drop down lugs and rubber bumpers included as standard equipment



  • Motorized Trolley

    • Adjustable for flange widths from 3.25” to 12” without additional materials
    • Side guide rollers for smooth motion and reduced wear on wheels and beam
    • Dual tread wheels for operation on tapered or flat flange beams
    • Drop down lugs and rubber bumpers included as standard equipment
    • Trolley motor features class F insulation, disc type brake, 30-minute duty rating (single phase, single speed rated 20-minute), and standard thermal protection.
